2. Thermal convection - parametric study

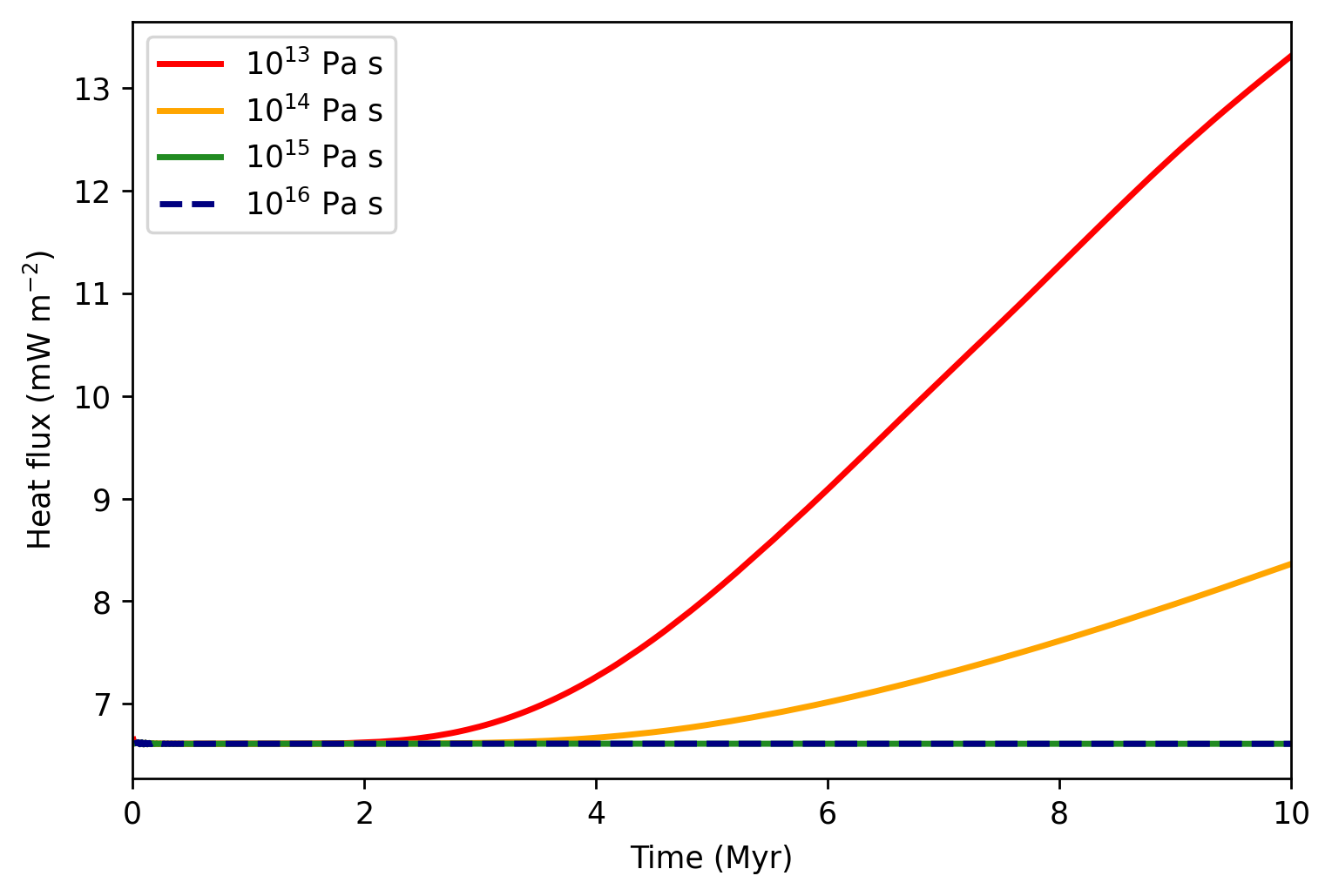

Evolution of surface heat flux with respect to time for four different values of basal viscosity.

Download

Here you can download the bash script, the parameter fileand the matplotlib scriptfor the heat flux evolution. Detailed explanation is given below.

Note

Copy the bash script, parameter file, and plotting script from /demos/demo2/ into the main directory.

Bash script modification

Compared with the previous example, we now want to perform a parametric study. Let’s assume that the computer has 8 cores and we want to launch all simulations at once. We change the loop parameter to loop=2 and define over which values the loop should run. First, two simulations at once will be launched, the third and fourth will be launched once the first and second are finished, respectively.

We choose to explore viscosities \(10^{13},\) \(10^{13}\), \(10^{15}\) and \(10^{16}\) Pa s. As it is easy to pass an integer from bash script to python, we run the loop over the exponents 13 14 15 16:

# --- Number of cores ---
n_cores=4

# --- Maximum number of cores the script can take ---
n_cores_max=8

# --- Running on background or foreground ---
# background=0 -> running on foreground and output to screen
# background=1 -> running on background and output to file
# >>> Note that a choice loop=1 or loop=2 below always write to file
background=1

# --- Loop over parameters? ---
# loop=0 -> script launches the code once
# loop=1 -> script launches a parametric sweep with one simulation at a time, running at n_cores cores
# loop=2 -> script launches as much as possible until n_cores_max, launches next as the previous ones end
loop=2

.
.
.

elif [ $loop -eq 2 ]; then
    # --- Parameter loop ---
    for par in 13 14 15 16
        do
            # --- Waiting loop ---
            while true
                do
                    # --- Check every second if there are enough free processors ---
                    sleep 1
                    if [ $(ps -ef | grep -v grep | grep main_MF | wc -l) -lt $n_cores_max ]; then

                        # --- Launch once and exit the waiting loop ---
                        run_MilleFEuiIle_loop par
                        break

                    fi
                done
        done
fi

Parameter file modification

Compared to the previous tutorial, we only need to do several adjustments to accomodate from the bash script. The number that the shell script passes to the python code can be accessed using int(sys.argv[1]).

First, we incorporate this parameter to the directory name, so that every simulation has its own directory:

# --- Name of the directory with results ---
name = "demo2_convection_1e" + str(int(sys.argv[1])) + "Pas"

In order to compare heat fluxes through the bottom boundary, we include them in the statistics

stat_output = ["q_top", "time", "timestep"]
stat_header = ["q_top (W/m2)", "Time (h)", "dt (s)"]

And as the numer represents the viscosity exponent, we define the viscosity at the melting temperature eta_0 as follows:

# --- Parameters for constant / temperature-dependent viscosity ---
eta_0 = 10.0**int(sys.argv[1])

Plotting

The plotting script reads the statistics files from all four simulations. We provide path to these files, and define the labels that will appear in the legend and the color and style for each of the lines.

# --- Define the directories ---
directories = [
    "data_demo_convection_1e13Pas/statistics.dat",
    "data_demo_convection_1e14Pas/statistics.dat",
    "data_demo_convection_1e15Pas/statistics.dat",
    "data_demo_convection_1e16Pas/statistics.dat"]

# --- Define the labels ---
labelnames = [r"$10^{13}$ Pa s",
            r"$10^{14}$ Pa s",
            r"$10^{15}$ Pa s",
            r"$10^{16}$ Pa s"]

# --- Define the line colors ---
colors = ["red", "orange", "forestgreen", "navy"]

# --- Define the line styles ---
styles = ["solid", "solid", "solid", "dashed"]

.
.
.

Finally, we specify that we want to plot the third column in the parameter file (column = 2, numebered from 0) and call the function plot_time().

# --- Plot the third column in the file ---
column = 2
plot_time(ax0, directories, column, labelnames, colors, styles)
